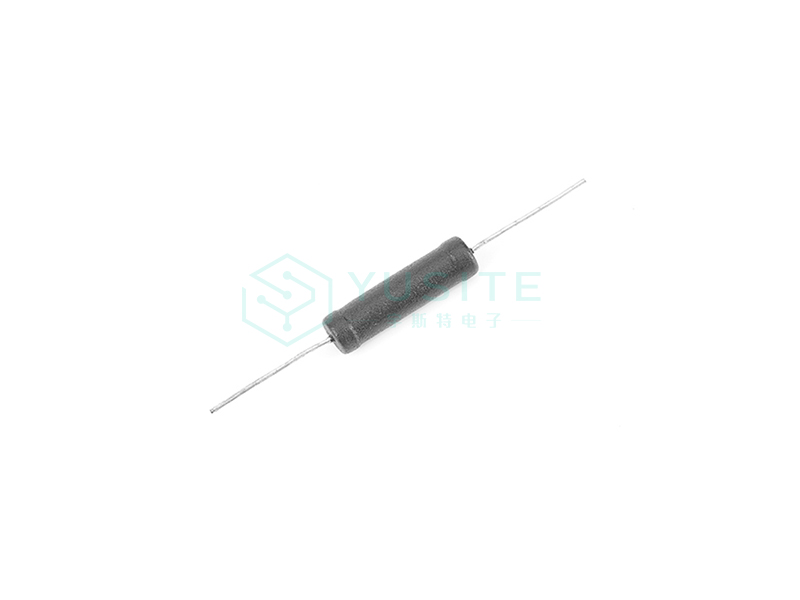

型号 | 额定功率 | 最大工作电压 | 阻值 | 外形尺寸 | |||
最小值 | 最大值 | A | B | C | |||
RIPS20 | 3 | 1 | 200 | 1G | 20.20 | 8.20 | 1.00 |
RIPS26 | 5 | 2 | 250 | 1G | 26.90 | 8.20 | 1.00 |
RIPS32 | 7 | 4.5 | 300 | 1.5G | 32.00 | 8.20 | 1.00 |
RIPS39 | 9 | 4.5 | 400 | 1.5G | 39.0 | 8.20 | 1.00 |
RIPS52 | 10 | 6 | 500 | 2.5G | 52.10 | 8.20 | 1.00 |
RIPS78 | 15 | 6 | 900 | 4G | 77.70 | 8.20 | 1.00 |
RIPS103 | 20 | 6 | 1K2 | 6G | 101.30 | 8.20 | 1.00 |
RIPS124 | 25 | 6 | 1K5 | 8G | 123.30 | 8.20 | 1.00 |
RIPS154 | 30 | 6 | 2K | 10G | 153.7 | 8.20 | 1.00 |
试验项目 | 性能要求 |
阻值精度 | ±5%,±10% 如有特殊需要可提供1% |
温度系数 | 100ppm/℃(测试区间：+25℃～+125℃；+25℃～-55℃) 100ppm/℃ +125℃ and -55℃ |
寿命 | 1000小时 △R≤0.5% |
绝缘层电阻 | 10GΩ |
涂覆层 | 高温硅树脂 |
过载 | ≤1.5Pe 5s △R≤0.5% |
热冲击 | △R≤0.25% |
耐潮性能 | △R≤0.4% |
可焊引线 | 30±3mm |
